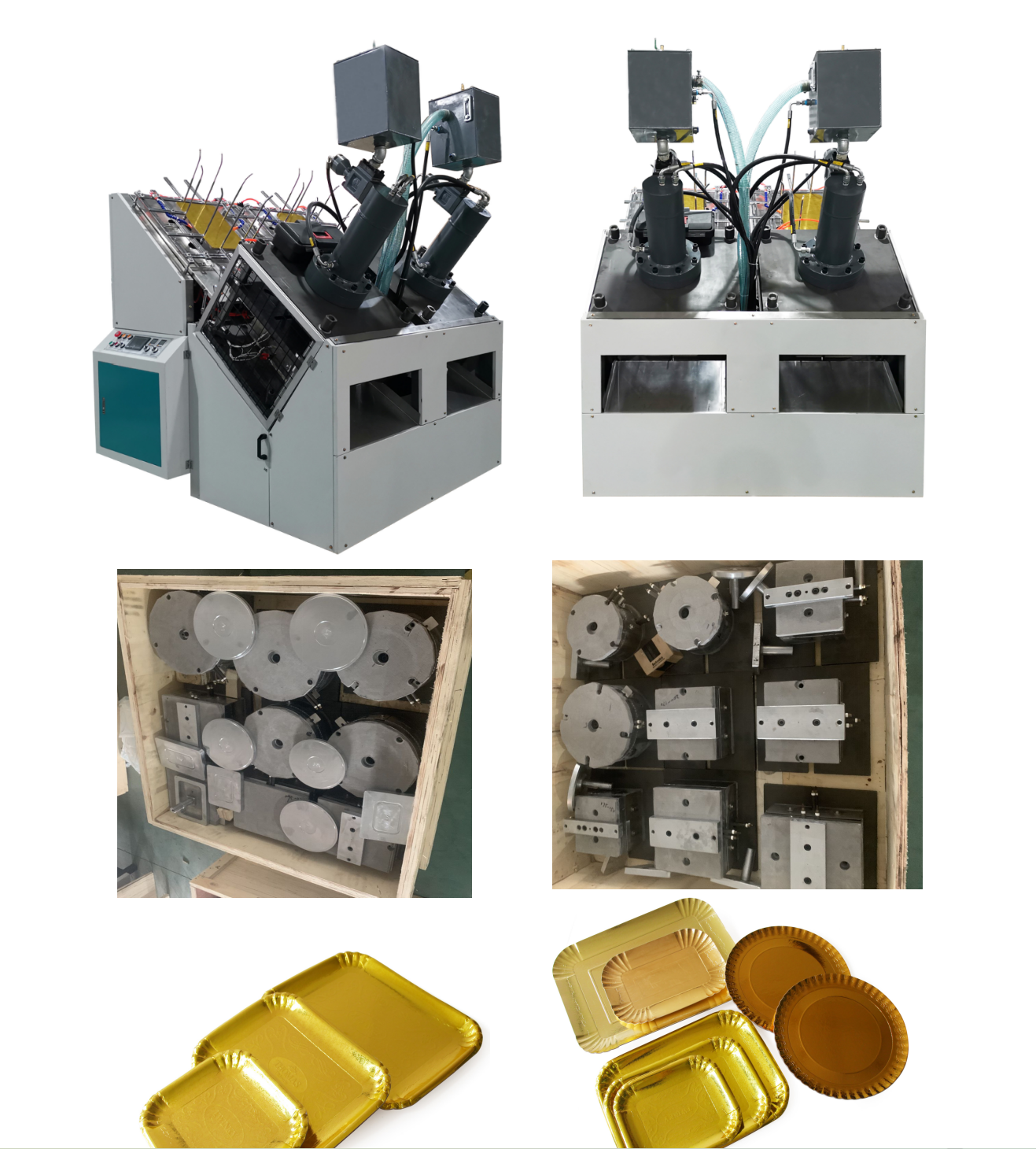

BJ-600P Heavier Hydraulic Press Paper Plate Machine

• The BJ-600P is characterized by specialized features tailored to high-pressure paper plate forming:



  • Enhanced Hydraulic Press System: Equipped with a heavy-duty hydraulic cylinder (visible in the machine structure imagery), it delivers stable and high-pressure output, ensuring firm shaping of paper plates even with thick materials (600-2000 g/m²) . This system replaces traditional pneumatic drives, eliminating pressure fluctuations during forming.


  • Dual-Station Operating Structure: The machine adopts a dual-station design (evident in the modular workbench layout), allowing simultaneous production of different sizes or shapes of paper plates. Each station operates independently, maximizing production flexibility .


  • Integrated Intelligent Controls: Fitted with a PLC system and HMI touchscreen (clear in the control panel image), it enables precise parameter adjustment for plate size (10-18 inches), forming speed, and temperature. Photoelectric tracking technology ensures real-time monitoring of production processes .


  • Heavy-Duty Mechanical Framework: Built with reinforced steel structures (weighing approximately 1600 kg), it withstands continuous high-pressure operation while maintaining structural stability. The enclosed safety housing protects operators and reduces noise .


  • Customizable Auxiliary Modules: Optional configurations include automatic paper feeding, heating forming units, and post-production counting systems, adaptable to diverse production scales .




The BJ-600P’s features translate into tangible benefits for manufacturers:

• Superior Forming Quality: The heavy-duty hydraulic system provides consistent pressure, resulting in paper plates with smooth edges, firm structures, and strong load-bearing capacity—ideal for holding wet or oily foods without deformation .



• High Production Efficiency: With a dual-station design, it achieves a production rate of 40-70pieces per minute, doubling the output of single-station models. This efficiency meets the demands of large-scale orders and fast-paced supply chains .



• Cost Optimization: The hydraulic drive reduces energy consumption compared to pneumatic systems, while the low waste rate (as low as 1/1000) minimizes material loss . The durable structure also lowers maintenance costs and extends equipment lifespan.



• Strong Material Adaptability: It handles various materials, including base paper, whiteboard paper, and aluminum foil paper, supporting the production of both standard and premium paper plates for different market segments .

• Seamless Production Line Integration: Compatible with automatic packaging machines, it enables end-to-end automation from forming to packaging, reducing manual intervention and improving workflow efficiency .

The BJ-600P integrates automated functions to cover the entire production cycle:

• Automatic Paper Feeding & Positioning: Pneumatic suction devices (visible in the feeding mechanism) accurately deliver paper blanks to the forming stations, while photoelectric sensors ensure precise alignment, reducing misfeeding errors .



• Hydraulic Forming & Heating: The hydraulic press applies high pressure to shape paper blanks into plates, with optional heating modules maintaining optimal forming temperature for different paper thicknesses, enhancing bonding stability .



• Precision Cutting & Trimming: Built-in cutting tools trim excess paper to achieve uniform plate sizes, controlled by the PLC system to ensure dimensional accuracy within ±0.5mm .



• Automatic Collection & Counting: Finished plates are collected by a conveyor system, with an optional counting function that records output in real time, simplifying inventory management .



• Fault Diagnosis & Protection: The PLC system detects abnormalities (e.g., pressure fluctuations, material shortages) and triggers alarms, automatically pausing operations to prevent equipment damage .

The BJ-600P’s versatility makes it suitable for multiple scenarios:

• Foodservice & Catering: Ideal for producing disposable plates for restaurants, fast-food chains, and catering companies. Its high output meets peak-demand needs for events, weddings, and large gatherings .



• Retail & Supermarkets: Supports production of branded or printed paper plates for retail sales, targeting households and small businesses seeking convenient, eco-friendly tableware .



• Food Packaging Industry: Manufactures oil-resistant or moisture-proof plates (using aluminum foil paper) for packaging snacks, baked goods, and ready-to-eat meals, ensuring product freshness .



• Institutional Procurement: Supplies large quantities of standardized paper plates to schools, hospitals, and corporate cafeterias, where durability and cost-effectiveness are prioritized .



In conclusion, the BJ-600P Heavier Hydraulic Press Paper Plate Machine combines heavy-duty performance with intelligent design, making it a top choice for manufacturers aiming to scale up paper plate production. Its reliable forming quality, high efficiency, and broad applicability empower businesses to meet market demands while adhering to sustainability goals. Whether for mass-market disposables or premium packaging solutions, the BJ-600P delivers consistent value and competitive advantage.
